Specification

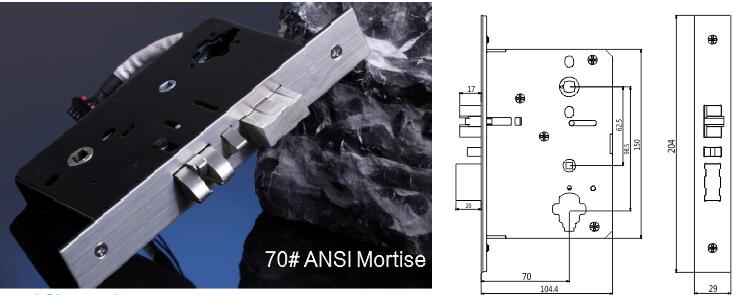

With standard 70mm backset ANSl mortise.

Inside parts are with blue zinc treatment to reach the environmental protection requirement.

Microswitch inside the mortise is with over 1000,000 times life test.

Latch and deadbolt parts are with 304# die casting stainless steel material,durable and reliable.

Flat spring for the mortise is with imported piano wire with 500,000 times life test.

Spindle part is with special steel and heat treatment with over 1000,000 times test.

High quality motor with 500,000 times life test. ensure the long years use.

Patent structure desian with simple change for left and riaht direction.

PARAMETERS

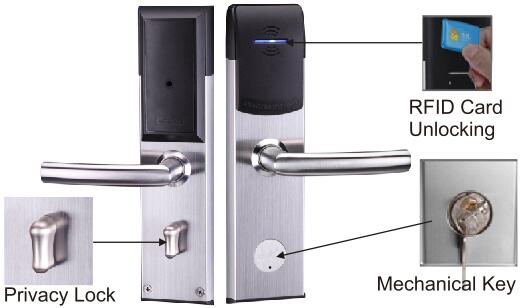

Mechanism: 304# front/back panel and handle304# cylinder cover and handle collarensure the use under high humidity areaUnlock way: Mifare card or mechical keyPower supply: 4xAA alkaline battery(DC6v)Static current: 25uA

Dynamic current:< 150mA

Working temperature:-20~45 degree

Working humidity: 20~95%

Battery life: Normal open: 15000 times

Low power alarm: when poweris less than 4.8v, thre is di-di-di beepthen you can still open 150 times.Audit trial: 990 latest records include the mechanical keyAvailable door thickness: 30~65mmSuggest usage: wood door
